Machine

Model

HF352S

(52   inches three  systems single roller)

HF338S

(38 inches three systems single roller)

Gauge

14G

14G

Needles/Width

728 needles/52 inches

532 needles/38 inches

Main Function

fullfil basic pattern (half milano, full needle, single face and so on) irregular multi-colors jacquard, intarsia, cable, pointel and so on, also can fulfil tight tuck pattern as well as filling pattern.

T

E

C

H

N

I

C

A

L

S

P

E

C

I

F

I

C

A
T

I

O

N

KnittingSystem

Single carriage three systems, with digital technology, fulfil patterns of transfer, pointel, tuck, intarsia, jacquard, double jersey plain, apparent shape, hidden shape and other regular pattern knitting functions.

Knitting Speed

Max knitting speed 1.7M/S. 32 speed sections controlled by servo motor.

Stitch Density

64 density selection range 0-650 controlled by stepping motor, electrical fine adjust technology.

Dynamic Stitch

Deviced by dynamic stitch technology, achieve the variety stitches in one course and variety density in one course to improve knitting efficiency and variety.

Rib transfer

Free transfer double ways between front and back needle at same time and no limitation by carriage movement. Transfer and knit individually.

Sinker

Stepping motor control the adjustable sinker to achieve the multiple shaping and widening function.

Selection Needles

8 sections selection needles

Single Packing

Motor drive racking, achieve 1/2 or 1/4 needle racking at any position. max 2 inches one side suitable for 14G machine.

Turn Back Joint(Optional)

Turn back joint controlled by stepping motor increase the carriage return speed and productivity as well as avoid the worn of the carriage rail.

Roller Device

Up-position roller can fuifil the perfect take down of fabric and the tension requirement for partial knitting.

Yarn Roller

Positive yarn roller precisely control the tension of the yarn to guarantee the fabric quality.

Yarn Carrier

2*8 yarn carriers deviced on 4 double sides lead rail.

Safety

Full machine cover to reduce the noise ad dust. Cover sensor,urgent button,power off device and indicator to guarantee the safety.

Auto Stop

Machine auto stop when yarn break, yarn joint stuck, fabric roll inside, needle hit, overload, program error and program end happens.

Needle Detector

Detect the floating needle to avoid the needle hit. This deviced with smart program and infrared sensor only detect the knitting area to avoid the miss alarming.

Computer System

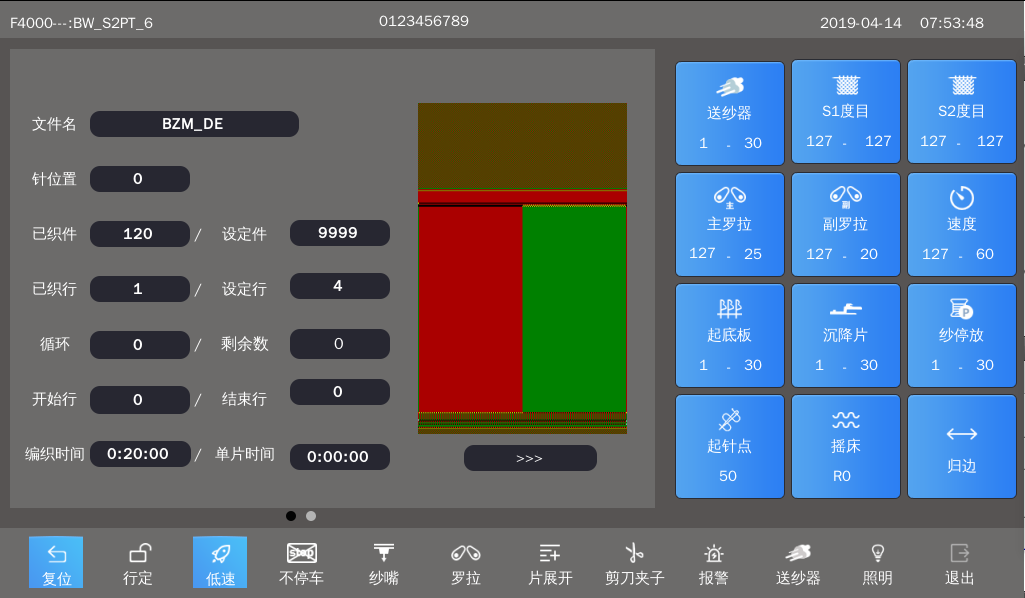

LCD monitor, touch screen, graphical interface, USB and net input, 1GB RAM for big file storage.

Monitor: Working data, stitch data optical and adjustable during production for convenient operation.

Program system and machine computer system easy to update and support CNT/HCD/OOO pattern file.

Multiple system language operation includes Chinese, English and other languages.

File Input

USB and network

Power Off Memory

Deviced advanced CMOS technology, when power off happen the knitting data and file is saved for restart knitting.

Net Connection

High speed (ETHERNET), maximum connect 254 machines for file input to fulfil monitor and data sharing.

Dimension

L*W*H 2325*920*2010mm                                               L*W*H 2325*920*2010mm

Weight

970kg 890kg
